Magnetically levitated Turbomolecular pumps for coating, research and industry

nEXT M pumps are one of the lightest and most compact Maglev turbo pumps available on the market in the 3,000 l/s pumping class, making them an excellent  choice for coating applications as well as research and industrial processes.

Providing the clean and stable environments critical for precise operations, the nEXT M Maglev pumps are not only reliable but also maintenance-free for up to 10,000 cycles.

nEXT 2807M and 3207M Maglev turbo pumps

Magnetically levitated turbo pumps, also known as Mag or Maglev pumps, are based on the highly successful mechanical turbomolecular vacuum technology.

The principal difference between mechanical and magnetically levitated turbomolecular pumps is that the ‘rotor’ and ‘stator’ blades are held in position by precision made magnets rather than oil-lubricated bearing systems.

This means they produce minimal levels of friction and vibration, and cleaner, contamination-free vacuum performance making them ideal for processes such as coating.

The electromagnetic bearings also make them suitable for harsh industrial environments as they are able to withstand mechanical-shocks as well as exposure to dust and moisture.

But what makes the nEXT M range really stand out is their versatility.

Benefits of the nEXT M turbo pumps:

  • Compact and lightweight: the nEXT M are among the smallest and lightest maglev turbo pumps on the market making them the go-to choice when your available space is tight.
  • Mountable in any orientation: for complete flexibility you can deploy them from multiple angles on your chamber.
  • Ultra-clean operation: because they are completely oil and contaminant-free, as well as operate with minimal levels of vibration, the nEXT M pumps are ideal for applications dealing with sensitive processes where clean vacuum levels are utmost needed.
  • Reliable performance: their 5-axis active magnetic bearing and drive system significantly reduce friction levels, resulting in improved reliability and fault-free performance.
  • Range of pumping speeds: optimised for a wide range of gases the nEXT M delivers pumping speeds of up to 3,200 l/s.
  • Minimal maintenance: due to reduced wear and tear, all models are service-free for up to 80,000 hours.
nEXT2807M and the nEXT3207M turbomolecular pumps

Applications of the nEXT M turbo pumps:

nEXT M Pumps are ideally suited for sensitive processes, as well as in challenging industrial environments:

Coating

covering thousands of products from glass lenses, surgical instruments and solar panels to aerospace components and telescopic lenses used in astronomy

Scientific research

from simulated space environments to particle accelerators and fusion research

Industrial

Furnace welding applications and precision-made machine parts

FAQs of the nEXT M turbo pumps:

What are the operational advantages in using pumps from the nEXT M pumps?

Hydrocarbon-free performance, resilience, reliability and low levels of vibration.

What is the typical maintenance cycle?

Up to 80,000 hours, or 10,000 start/stop cycles of maintenance-free performance.

What makes this pump ideal for coating applications?

Coating applications require stable environments with minimal levels of vibration.

What is the cooling method?

Efficient cooling of the pump is achieved through a water-cooling process via the inlet/outlet ports on the pump.

What are the range of pumping speeds available in this range?

The nEXT 2807M has a pumping speed of up to 2,500 l/s and the nEXT 3207M has a pumping speed of up to 3,200 l/s.

nEXT M Maglev Turbo Pumps - Digital Brochure
English

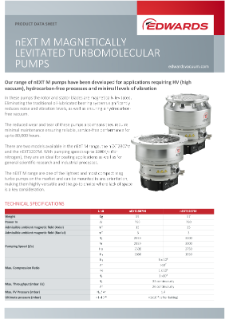

nEXT M turbomolecular pumps - Datasheet

PDF

4.1 MB
