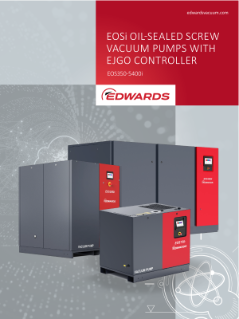

EOSi oil-sealed screw vacuum pumps Brochure
EOSi Rotary Screw Vacuum Pumps
The new generation of quiet, intelligent pumps
Designed to deliver energy savings
If your business is looking for versatility and flexibility for your industrial application, the EOSi should be your first choice. With a Variable Speed Drive (VSD+), impressive on-demand performance capability and optimised energy consumption, the innovative technology at the heart of this vacuum pump delivers benefits every day.
Easy to use and simple to maintain
Plug & play, universal flange vacuum connections, check valve and inlet filter standard integrated, everything you need is included. Service components design for long maintenance intervals to lower cost of ownership for all customers.
Intelligent control and monitoring system
The Edwards’ latest cutting-edge EJGO intelligent controller, provides insights and recommendation regarding pump use and longevity. Support network and wider fieldbus communication. Offer you the access to live remote data and trends map. Helps you updated information for everyday management of your vacuum pump, including alert notification, maintenance. Keep your vacuum pump running efficiently and reliably for years to come.
Unlock Peak Performance with GENIUS Instant Insights™
When your pumps are connected to GENIUS, you can plan downtime for maintenance and align it with your production schedule, know when to perform service, get alerts indicating failures, and much more.
Keep your pumps in good health. Dive into the future of vacuum technology.
Innovative motor design
State-of-the-art screw technology and the built-in Variable Speed Drive (VSD+) ensures the EOSi can maintain a set point pressure and adjust its speed to match the demand at that pressure. This can provide you with potential energy savings of 50%* or more.
*In most applications compared to traditional fixed speed vacuum technologies based on measurement with our Vbox energy audit tool.
Energy recovery options available
The EOSi conforms to energy management and environmental commitments according to ISO 50001/14001 – reliably performing to the highest standards.
You choose what suits you best
The EOSi is available in up to 4 variant options – Standard, Q, W, or WQ - to enable you to select the optimal choice for your application. If you need expert advice, we are always happy to help.
Suitable for a wide range of industries
The EOSi is ideal for the Food, Plastics, General Packaging, Coating, Drying and Roof and Tile manufacturing among others. For a detailed list, please do get in touch.
- Technical Specifications
- Downloads
- Customer Care Studies
Units |
EOS350i |
EOS585i |
EOS730i |
EOS900i |
EOS1400i |
EOS1700i |
EOS2000i |
EOS3800i |
EOS4600i |
EOS5400i |
|
Nominal displacement |
m3/h / cfm |
400 /240 |
560 / 330 |
730 / 430 |
900 / 530 |
1400 / 824 |
1620 / 953 |
1818 / 1070 |
3828 / 2253 |
4478 / 2636 |
5004 / 2945 |
Ultimate vacuum |
mbar / Torr |
0.35 / 0.26 |
0.35 / 0.26 |
0.35 / 0.26 |
0.35 / 0.26 |
0.35 / 0.26 |
0.35 / 0.26 |
0.35 / 0.26 |
0.35 / 0.26 |
0.35 / 0.26 |
0.35 / 0.26 |
Inlet connection |
- |
DN 80 |
DN 80 |
DN 80 |
DN 80 |
DN125 |
DN125 |
DN125 |
DN 200 (PN10) |
DN 200 (PN10) |
DN 200 (PN10) |
Outlet connection |
- |
DN 60 |
DN 60 |
DN 60 |
DN 60 |
DN125 |
DN 100 |
DN 100 |
DN 150 (PN10) |
DN 150 (PN10) |
DN 150 (PN10) |
Shaft power |
kW |
5.5 |
7.5 |
11 |
15 |
22 |
30 |
37 |
55 |
75 |
90 |
Ambient temperature |
°C |
0-46 |
0-46 |
0-46 |
0-46 |
0-46 |
0-46 |
0-46 |
0-46 |
0-46 |
0-46 |
Noise level range |
dB(A) |
51-65 |
51-68 |
51-73 |
51-76 |
55-74 |
58-77 |
58-78 |
83 (+/-3) |
84 (+/-3) |
85 (+/-3) |
Oil quantity |
L |
16 |
16 |
16 |
16 |
45 |
45 |
45 |
85 |
85 |
85 |
Dimensions (L x W x H) |
mm |
1266 x 934 x 1083 |
1266 x 934 x 1083 |
1266 x 934 x 1083 |
1266 x 934 x 1083 |
1460 x 1361 x 1665 |
1460 x 1361 x 1665 |
1460 x 1361 x 1665 |
2850 x 1939 x 1893 |
2850 x 1939 x 1893 |
2850 x 1939 x 1893 |
Weight |
kg |
495 |
500 |
510 |
520 |
1180 |
1190 |
1200 |
3945 |
3980 |
4000 |
Electrical specification |
380-460V,3ph, 50Hz/60Hz, CSA/UL |
||||||||||
| Units | EOS1300i | EOS1600i | EOS1900i | |
| Peak pumping speed | m3/h / cfm | 1250 / 740 | 1590 / 940 | 1810 / 1070 |
| Ultimate vacuum | mbar / Torr | 0.35 / 0.26 | 0.35 / 0.26 | 0.35 / 0.26 |
| Inlet connection | - | DN 150 | DN 150 | DN 150 |
| Outlet connection | - | DN 100 | DN 100 | DN 100 |
| Shaft power | kW | 22 | 30 | 37 |
| Permissible ambient temperature | °C | 0 - 46 | 0 - 46 | 0 - 46 |
| Noise level range | dB(A) | 65-75 | 65-79 | 65-80 |
| Oil quantity | L | 40 | 40 | 40 |
| Dimensions (L x W x H) | mm | 1420 x 1590 x 1470 | 1420 x 1590 x 1470 | 1420 x 1590 x 1470 |
| Weight | kg | 1058 | 1058 | 1073 |
| Electrical specification | 380 / 460V 50 / 60Hz CSA / UL | |||

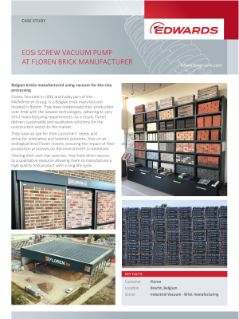

Edwards Case Study Floren
