RV Two Stage Rotary Vane Pumps

The ultimate range of small oil sealed rotary vane pumps

RV Two Stage Vane Rotary

A compact pump with excellent vapour handling capabilities

Our RV series rotary vane pumps are rugged pumps that offer you an excellent ultimate vacuum pressure with high pumping speeds of 3-12 m3h-1, as well as superior vapour handling capabilities and quiet operation.

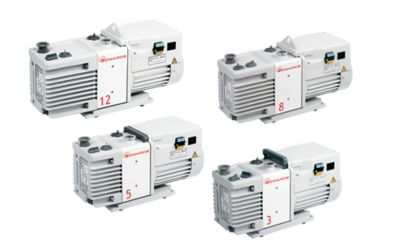

Edwards range of RV rotary vane pumps

Edwards range of RV rotary vane pumps

RV range of two stage rotary vane pumps

Edwards RV series of vacuum pumps have become the industry standard with over 400,000 units sold. This success has been based on field proven design and reliability in a wide range of scientific and laboratory applications and environments.

RV pumps are configured to meet your vacuum needs with a mode selector and 2 position gas ballast that allows either 60 g/hr or a class leading 220 g/hr (290 g/hr on RV12) of water vapour to be handled. This is ideally suited for your wet pumping applications such as freeze drying, extraction, filtration and gel drying.

But it doesn’t stop there, these pumps truly are multi-purpose pumps, extremely versatile, perfect for many applications.

For safe process and systems the built in anti-suck back protection prevents oil mist entering your system. The rapid closing inlet valve acts within 0.4 seconds of the pump stopping, providing reliable and safe operation in almost any application and thanks to the use of wide range motors the pump covers a wide range of possible voltage and frequency from two motor variants.

We can also offer an RV to meet your specific requirements including PFPE prepared and ATEX approved pumps.

Easy to maintain: the O-ring sealed sight glass makes visual inspection of the oil level and condition simple. The oil drain port is located at the end of the oil box for draining oil out of the pump. A large oil filling port and recess in the top of the oil box top makes oil top ups easy.

Swipe left to see all

Features & Benefits in a nutshell

  • Unique mode selection switch: enables high vacuum and high throughput operation from a single pump
  •  Low noise: from just 48 dB(A)
  •  High gas ballast flow rate: for up to 220 gh-1 water vapour pumping capacity
  • O ring sealed sight glass: allows visual inspection of the oil level and oil condition
  • High quality oils: with additives to prolong life whilst not impacting vapour pressure
  • Forced air cooling: ensures low pump surface temperature
  • Fast acting inlet valve: with controlled operating for system protection

Applications

Analytical instrument
Laboratory bench top vacuum
Backing turbomolecular pumps
Freeze drying
Research and Development

See our products in action!

EDWARDS CUSTOMER TESTIMONIAL

RV Oil Sealed Rotary Vane Pumps - Digital brochure
Vacuum Equipment for Research and Development Applications Brochure

PDF

25.2 MB

Vacuum Equipment for Analytical Applications Brochure

PDF

6.7 MB

Use the oil finder below to advise you on the correct oil as this can improve your vacuum performance, help with high operating temperatures without oil degradation, so extending intervals between oil changes.
